QSR1® – Circumferential

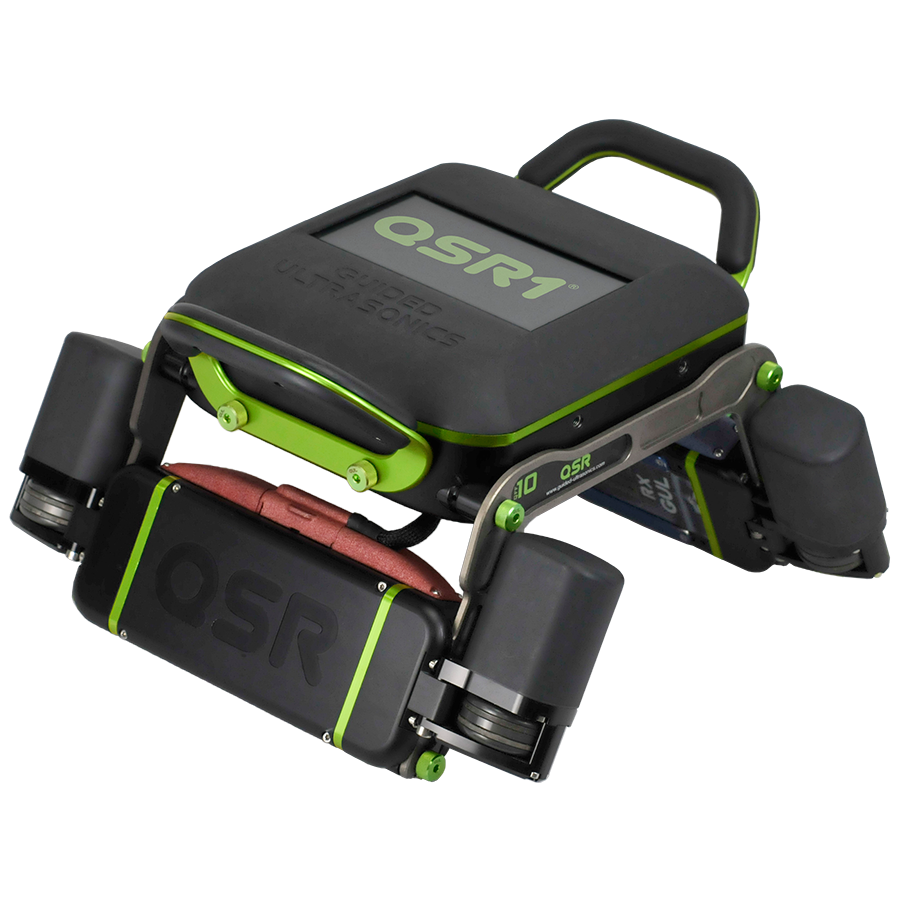

The QSR1® device incorporates the latest guided wave Quantitative Short Range (QSR) technology and hardware.

QSR1® moves axially along the top of the pipe, sending guided waves around its circumference to generate a thickness profile of the area of interest as described in the QSR® overview page.

The system provides a quantitative measure of remaining pipe wall thickness as well as the average value.

Request a quote

Supplied with

WaveProQSR™ License
USB Cable
Ethernet Cable
Transport Case

Specifications

Pipe Diameter
6″ to 24″ (DN 150 to 600) – Nominal API 5L
Pipe Wall Thickness
6 mm to 13 mm (0.236″ to 0.512″)
Operating Temperature
‐20°C to 70°C (‐40°F to 160°F)
Communications
USB, LAN
Clearance
Varies according to diameter:
from 210 mm to 170 mm [8.3″ to 6.7″]
Special frames available for limited clearance.
Pipe Orientation
Horizontal (±15 degrees)
Surface Preparation
Surface must be wiped clean of loose debris.
Coatings thicker than 1 mm must be removed under the sensor.
