QSR®‑ALF

Adjustable Large‑diameter Frame

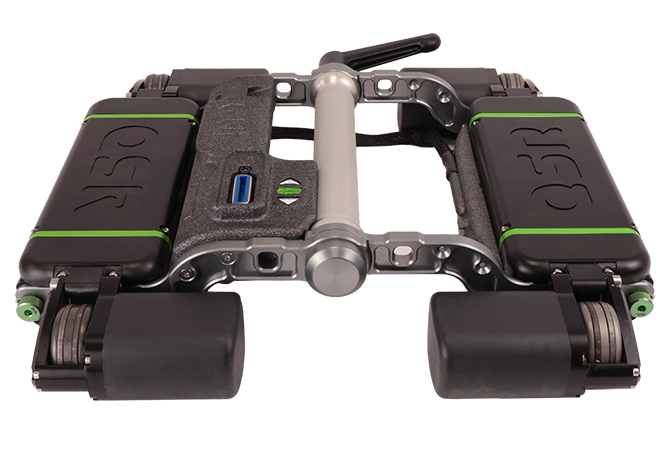

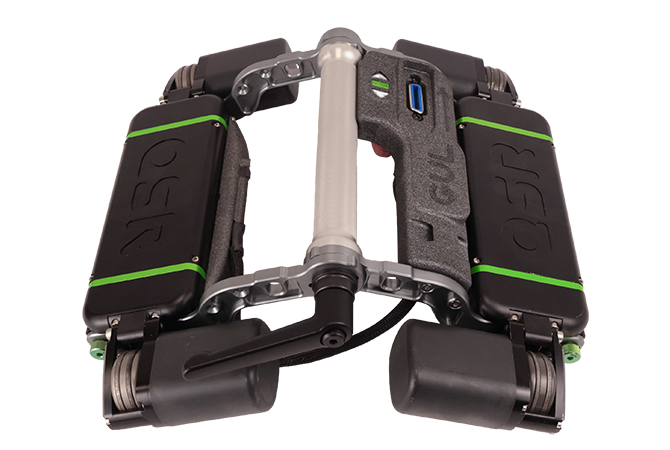

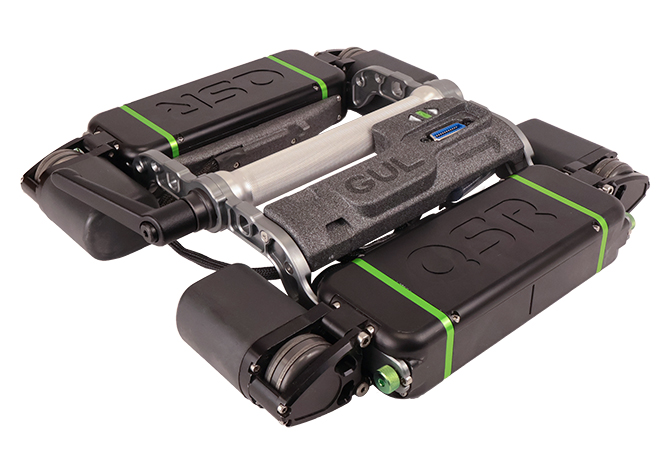

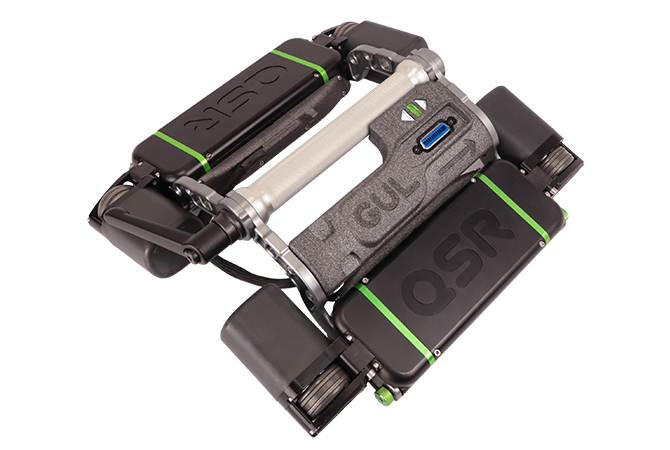

An adjustable frame designed to support guided wave scanning on large-diameter pipes. It operates with the same sensor carts as the QSR1® configuration and forms part of the QSR® System using circumferential propagation.

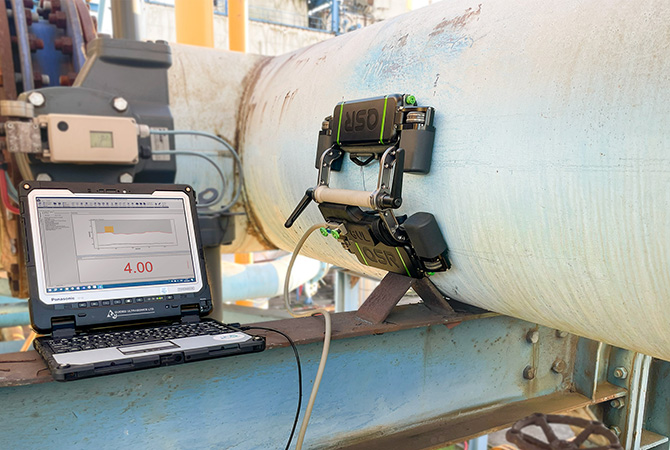

The QSR®‑ALF positions only the sensor carts on the pipe, with the ePOD connected remotely via a rugged cable. This allows placement closer to the area of interest while maintaining a compact footprint suited to tighter spaces.

Request a quote
Robust
Low Profile
Semi‑Automated
Pipe Diameter
12″ to flat (DN 300 to flat) – Nominal API 5L
Pipe Wall Thickness
6 mm to 13 mm (0.236″ to 0.512″)
Pipe Orientation
Horizontal (±15 degrees)
Operating Temperature
‐20°C to 70°C (‐40°F to 160°F)
Clearance
Varies according to diameter:
from 140 mm to 120 mm [5.5″ to 4.7″]
Surface Preparation
Surface must be wiped clean of loose debris.
Coatings thicker than 1 mm must be removed under the sensor path.

Supplied with

QSR™ ePOD Adapter Cable
