Description

HD Solid Rings

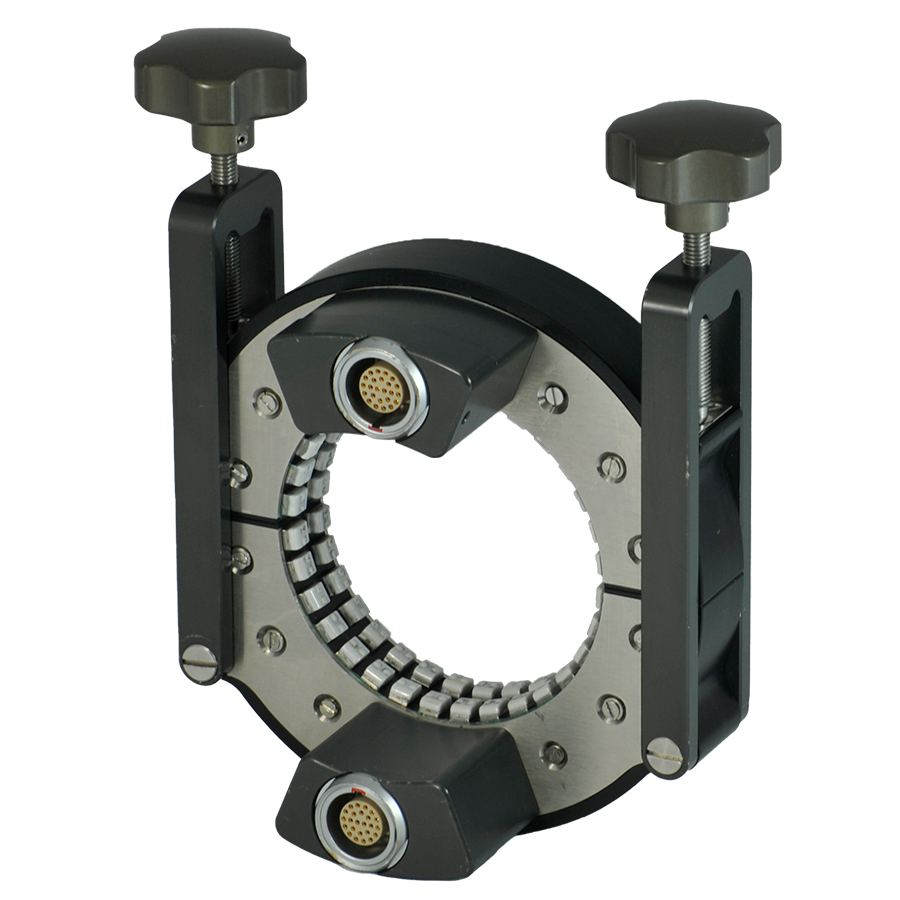

The High Definition (HD) solid rings have EFC performance and utilise the high frequency range available with the Wavemaker® G4mini or the Wavemaker® G4 with the medium frequency option (LF+MF option) for applications where higher sensitivity and resolution are required.

Such applications typically include:

  • interface penetrations
  • supports
  • localised pitting
Request a quote
Spring Loaded Transducers
High Temperature Version Available
High Frequency Operation Capable
Precision Milled Body
Ergonomic Fastening Handles
HD

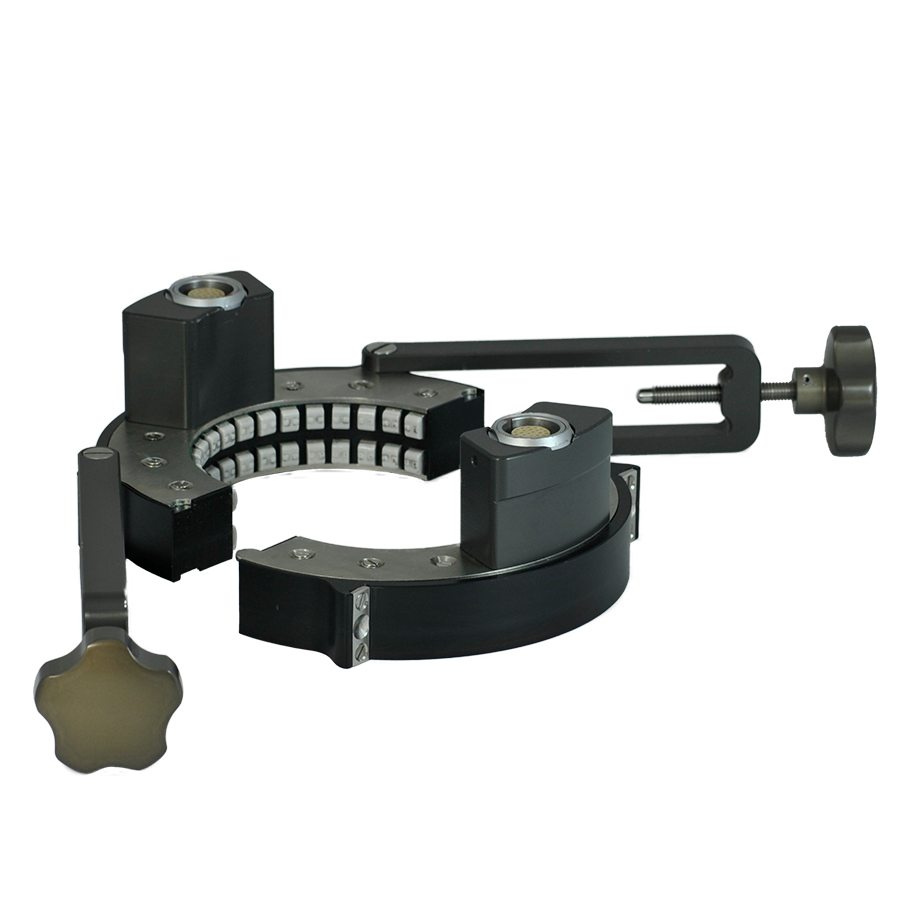

Spring-loaded transducer ring for inspection of pipes with up to 6” diameter at a high frequency range. Key application areas include:

• Bare / Painted Pipes
• Sleeved / Unsleeved Road Crossing Pipes • Buried Pipes
• Pipes with many welded supports
• Concrete Anchor Supports
• Inspections for Localised Pitting

HD-HT

HD solid ring specifically designed to inspect higher temperature pipes (< 350°C).
Key application areas include:

• Bare / Painted Pipes
• Sleeved / Unsleeved Road Crossing Pipes • Buried Pipes
• Pipes with many welded supports
• Concrete Anchor Supports
• Inspections for Localised Pitting
• High Temperature Pipes

Specifications

Number of Channels
8 or 16
Nominal Pipe Size (NPS)
3”, 4”, 6” (DN 80, 100, 150) (*)
Operating Temperature (HD Model)
-40°C to 150°C (-40°F to 302°F)
Operating Temperature (HD-HT Model)
-40°C to 350°C (-40°F to 662°F)
Radial Clearance
51 mm (2”)
Transduction System Compatibility
Wavemaker® G4 (with MF option) & Full (or Licensed) G4mini

(*) For 2.5′′ & under check Claw Transducers
