Description
EFC

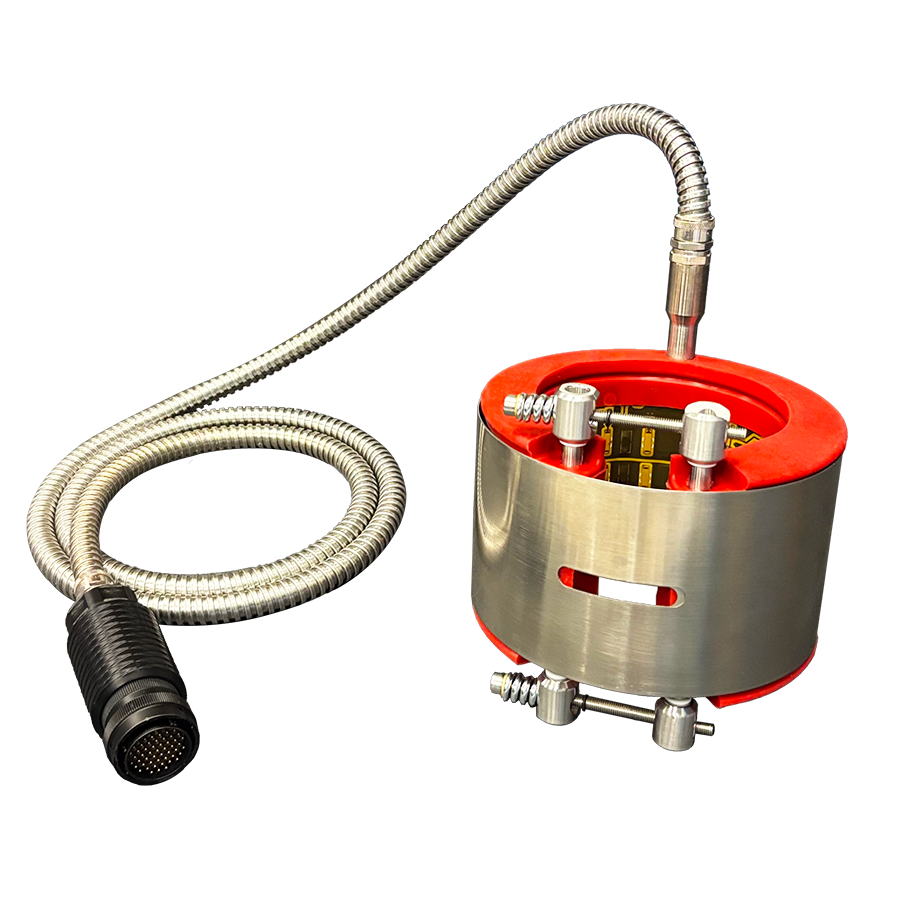

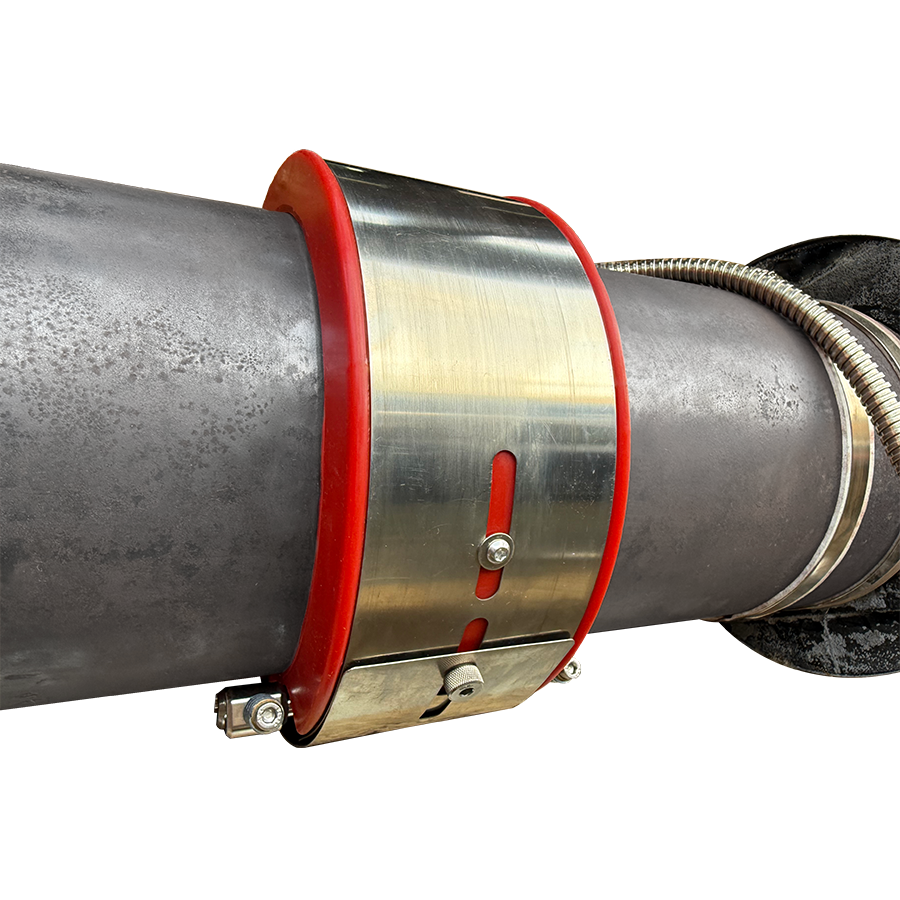

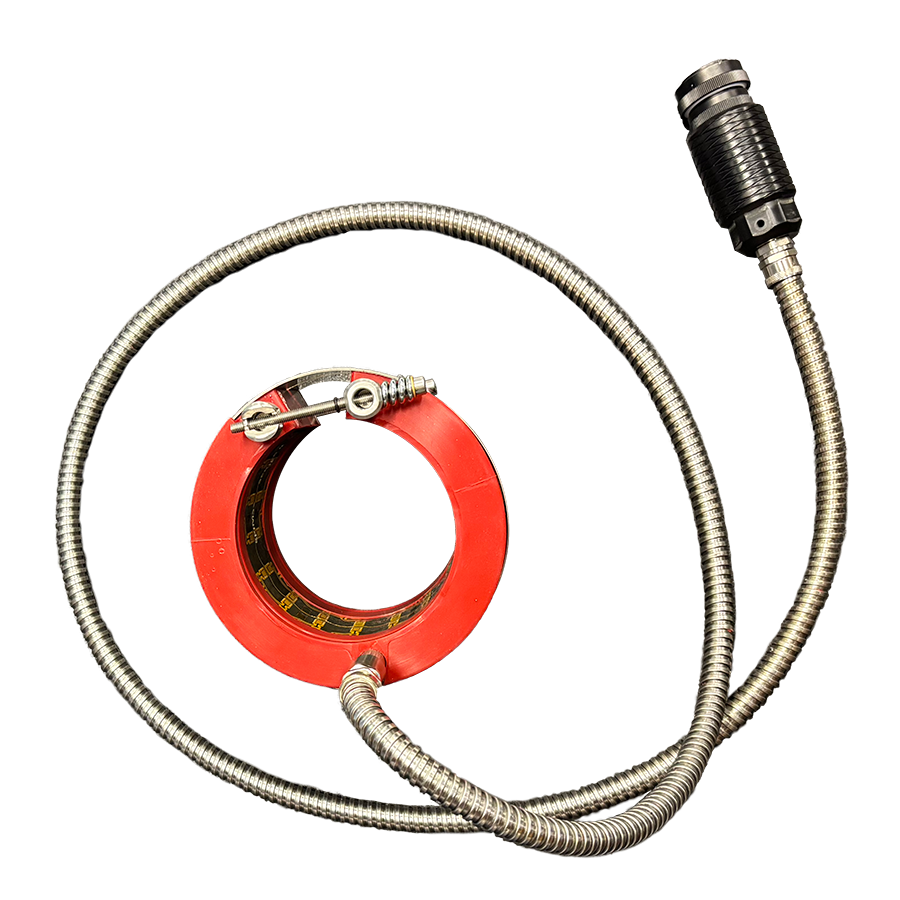

A 16‑channel gPIMS® HT ring kit for higher temperature applications that do not require hazardous area certification.
EX
An ATEX/IECEx certified 16‐channel gPIMS® HT ring kit for use in higher temperature applications where hazardous atmospheres may be present.
Specifications
Number of Channels
16
Nominal Pipe Size
2” to 48” (DN 50 to 1200)
Pipe Thickness
3 mm to 50 mm (0.12” to 2”)
Process Temperature
-40°C to 200°C (-40°F to 392°F)
Radial Clearance
40 mm (1.6”)
Axial Clearance
220 mm (8.7”)
