Description

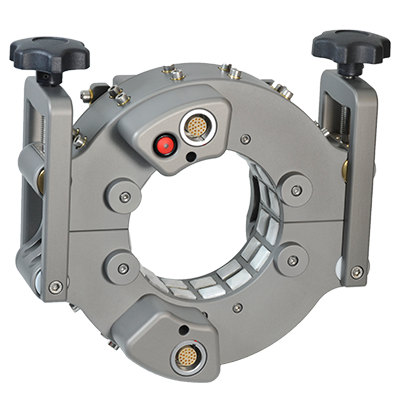

HT Solid Rings



HT solid rings are milled from aluminium and can be used on pipes up to 350°C (660°F) if the correct procedures are followed.

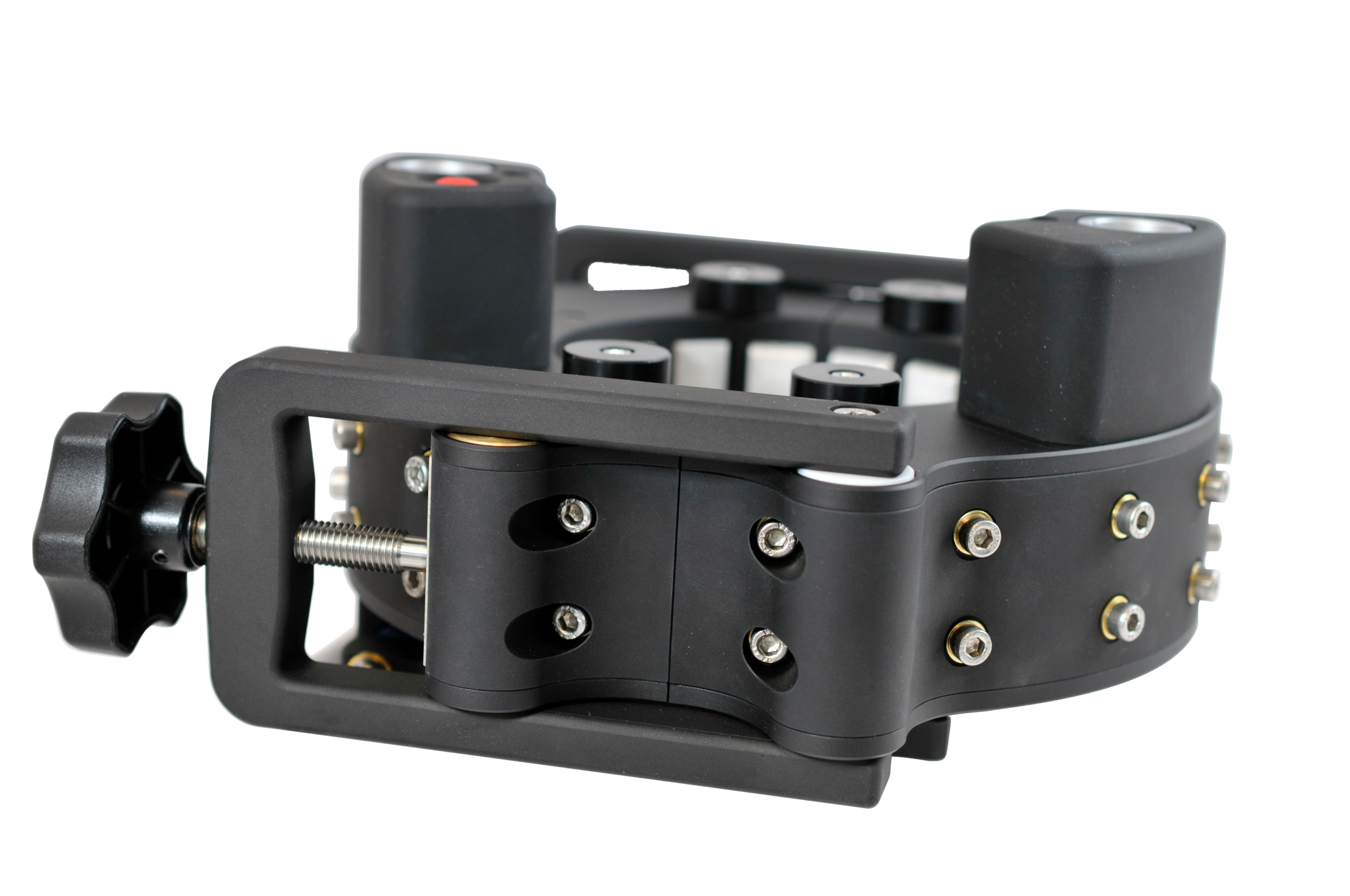

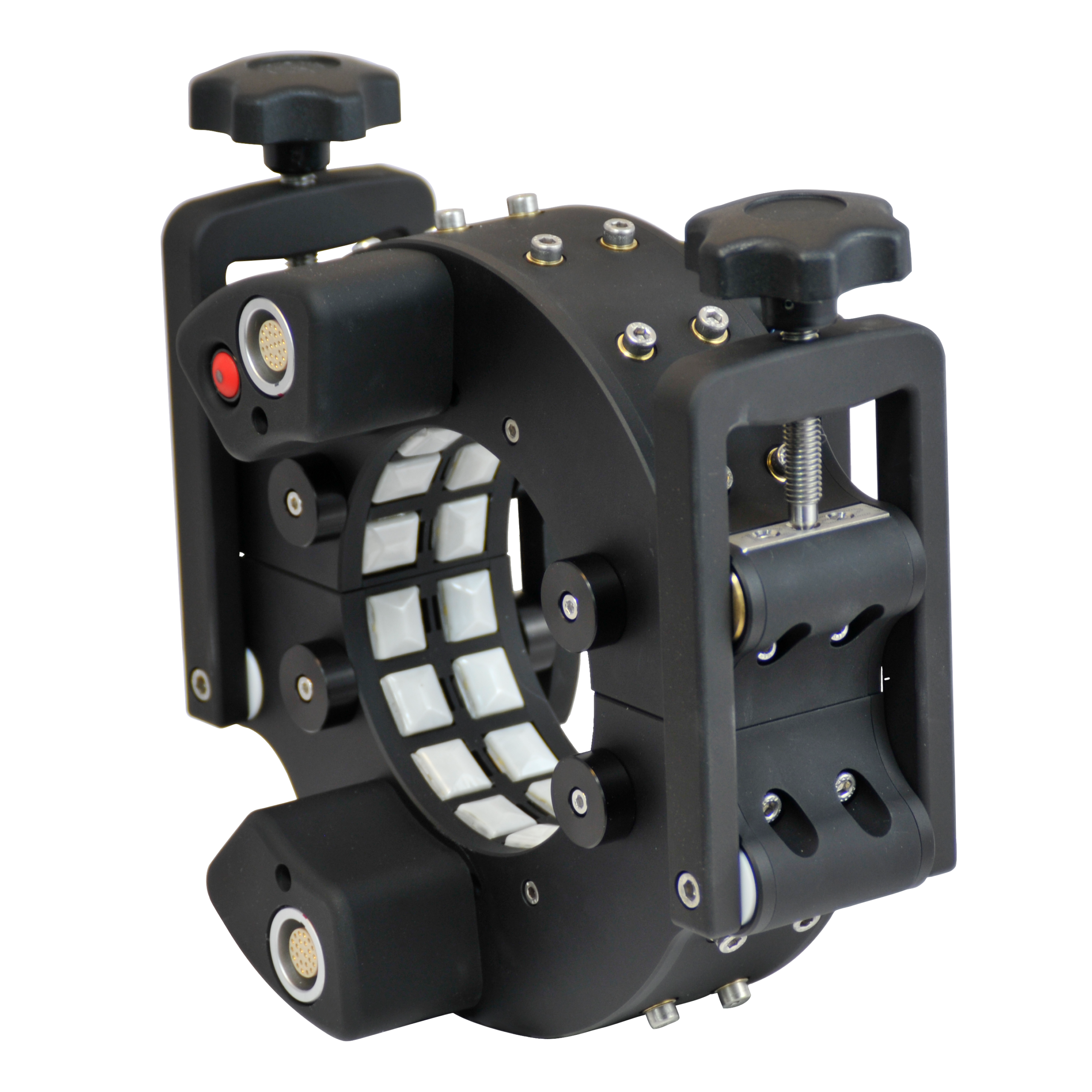

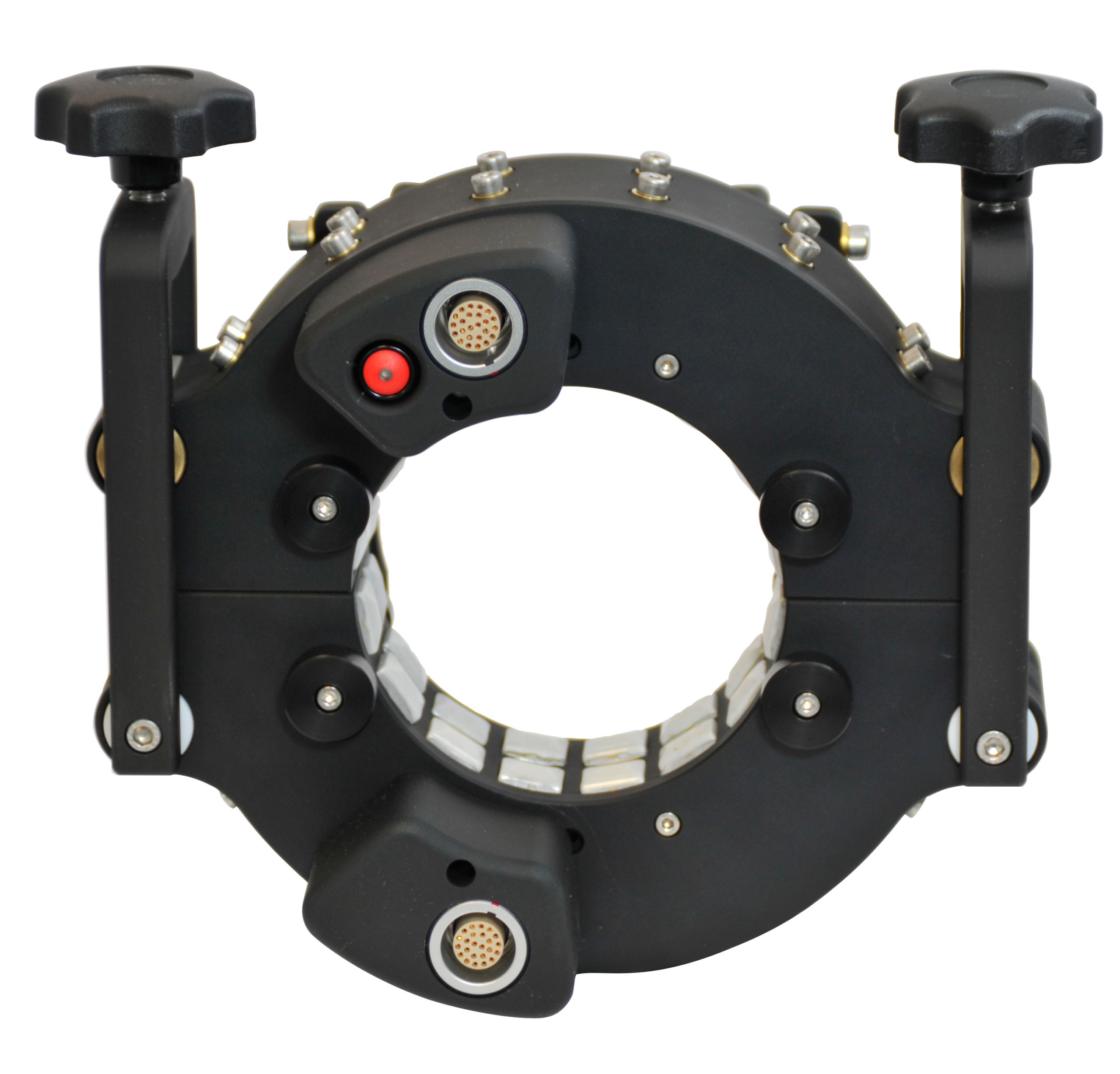

Solid rings are attached to the pipe by tightening the two large handles which push the spring loaded transducers onto the pipe to obtain good shear coupling.
HT solid rings work with all versions of the Wavemaker®.
Key application areas include:
  • Bare / Painted Pipes
  • Sleeved / Unsleeved Road Crossing Pipes
  • Buried Pipes
  • High Temperature Pipes

The High Definition (HD) solid rings have EFC performance and utilise the high frequency range available with the Wavemaker® G4mini or the Wavemaker® G4 with the medium frequency option (LF+MF option) for applications where higher sensitivity and resolution are required.

Such applications typically include:

  • interface penetrations
  • supports
  • localised pitting
Request a quote
2″ to 8″ NPS
16 channels
High Temperature Operation
Robust Milled Body
Spring Loaded Transducers

Specifications

Number of Channels
16 channels by default (12 for 2″)
Nominal Pipe Size (NPS)
2″, 3″, 4″, 6″, 8″ (DN 50 to 150)
Operating Temperature
-40° to +350°C (660°F)
Radial Clearance
50mm (2″)
Transduction System Compatibility
Any Wavemaker® instruments
