Inspecting Wall Penetrations

Wall Penetration Case Study

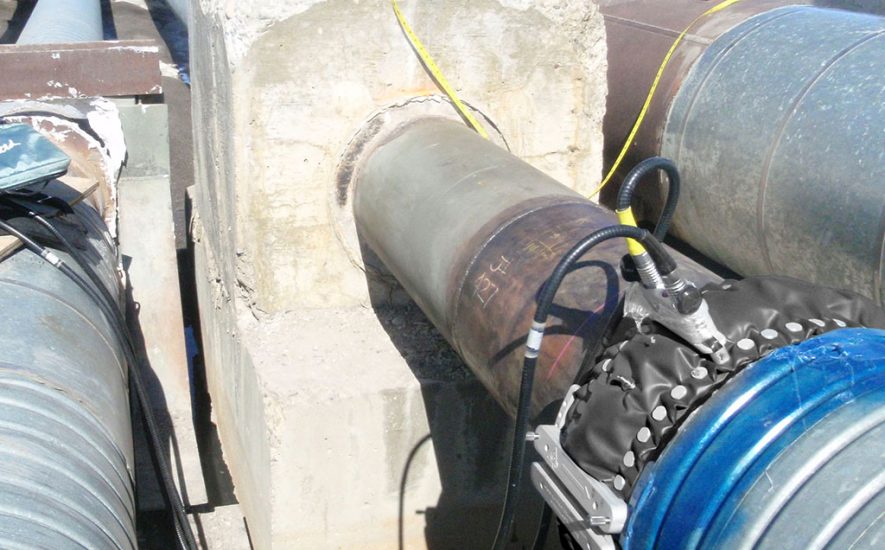

Wall penetrations are a common feature within storage facilities and oil and chemical plants. They can be used to control the spillage of products or serve as pipe anchors. The HD series of rings simplifies their inspection by reducing the amplitude of the reflection from the wall entrance in comparison to any defects that may be present.

Case Study (pdf in English)
Case Study (pdf en Español)

If corrosion is found, the QSR Axial scanner can provide an efficient method of quantifying the remaining wall without disturbing the pipe.
