gPIMS® system

Our monitoring system has a successful track record of more than 15 years in the oil and gas industry. Its robust design withstands the harsh environments ranging from those found in polar regions to those in desert areas, onshore and offshore, above-ground and buried.

The system hardware, the gPIMS® line of products, consists of a sensor, which is permanently installed on the pipe, and an instrument, which collects and stores the data.

The sensors are common to all system configurations, whereas the associated instrument depends on the chosen monitoring strategy:

  • Scheduled monitoring: infrequent and manual collections using a portable Wavemaker® instrument
  • Automated monitoring: frequent and automatic collections using a permanently installed field control unit

Find out more about scheduled and automated monitoring here.

The complete range of capabilities for these systems is accessed via our cloud-based data management, analytics and visualization software, Monitoring Studio.

Automated Monitoring

Hardware

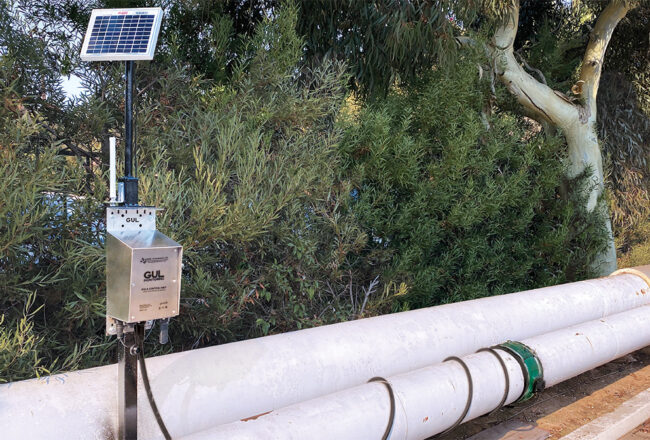

In automated monitoring, data is collected frequently by an autonomous, battery operated field control unit, which is permanently installed and connected to the sensor. This type of system offers many benefits over and in addition to scheduled monitoring systems:

  • Automation of data collection, resulting in a more reliable, continuous stream of data
  • Reliability of data transmission via Wi-Fi, cellular or wired connectivity, allowing collected data to be delivered in real time
  • Automation of data analytics, providing superior sensitivity in the face of the changing environmental and operational conditions of the pipe
Monitoring Studio

Software

The automated monitoring system is designed to take advantage of the data management, analytics and visualization power of the Monitoring Studio, which is accessed via a browser on your computer.

Our data integration service ensures there is an uninterrupted data flow from the moment data is collected to the point the information is displayed on your screen.

Check out our handy tool to configure your system.

Scheduled Monitoring

Hardware

The gPIMS® system hardware for scheduled monitoring incorporates a sensor, a connection box and a Wavemaker® collector instrument. The weatherproof connection box is typically mounted in an accessible location for connecting to the Wavemaker®.

As an intermediate solution between inspection and autonomous monitoring, the benefits of guided wave testing can be magnified with permanently installed sensors:

  • Comparing several sets of data over time allows qualified service providers to better identify changes caused by corrosion
  • Using the same sensor mounted in the same position removes equipment and positional variability between repeat measurements, resulting in improved comparisons
  • Access to the test position is only required once, dramatically reducing access cost for repeat measurements for buried, elevated and insulated pipes
  • The system is designed so collections can be performed with minimal training, removing the need for mobilizing highly qualified crews with equipment

Check out our handy tool to configure your system hardware.

Software

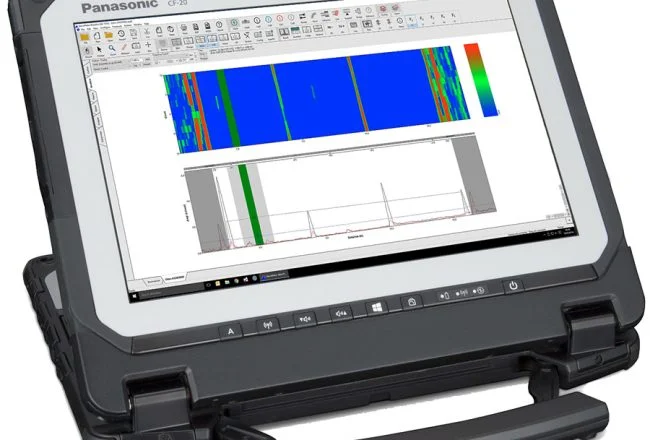

Scheduled monitoring involves a manual interaction and site visits, so data rarely happens to be collected more frequently than once every month. This is typically too low to take advantage of our advanced data analytics for Large Area Monitoring. Qualified service providers access tools within our WavePro software for data analysis, visualization and reporting.

All other capabilities, such as Small Area Monitoring, can be accessed via the Monitoring Studio software. The Monitoring Studio also acts as a data management platform for scheduled monitoring, making sure all your data is securely in one place and is never lost.

The hardware is designed so that it can be upgraded to an automated monitoring system should you want to take advantage of the data analytics at a later stage.

Cost-effective solution for repeat inspection

Our scheduled monitoring system hardware also allows also a cost-effective means of repeat inspection, where comparison of data is not the main objective and provision of repeated access for placing a screening sensor is difficult or costly:

  • Restricted areas, where personnel safety may be at risk at the sensor location

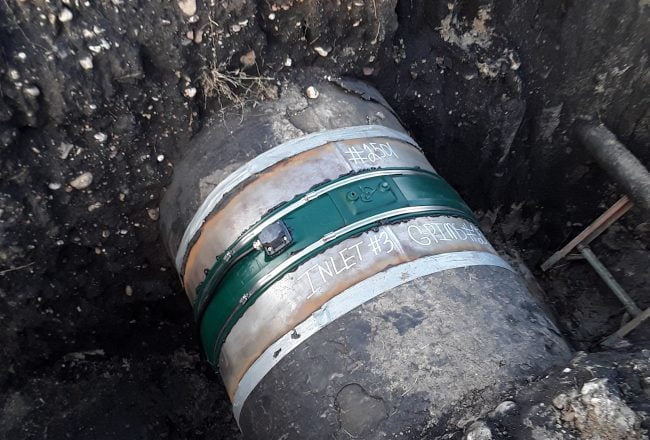

  • Buried pipes, where the cost of excavations typically far exceeds the cost of inspection
  • Elevated pipework requiring the use of scaffolding

Contact us to discuss how we can assist you
