Description

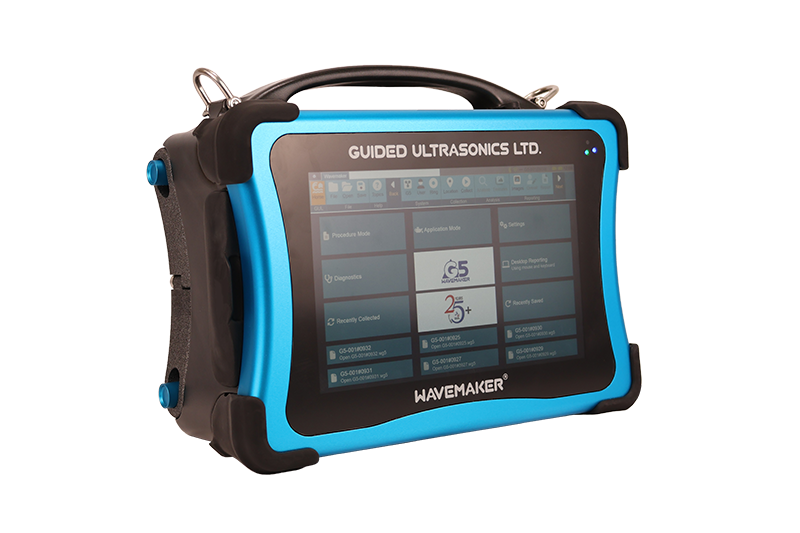

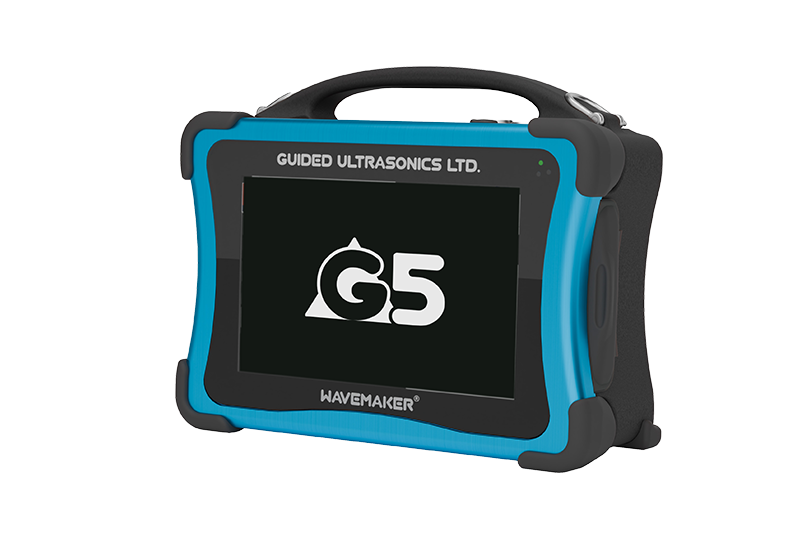

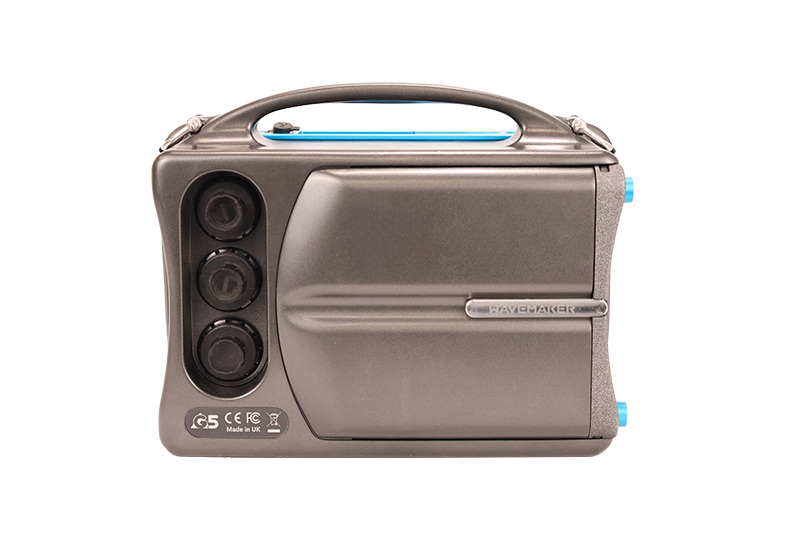

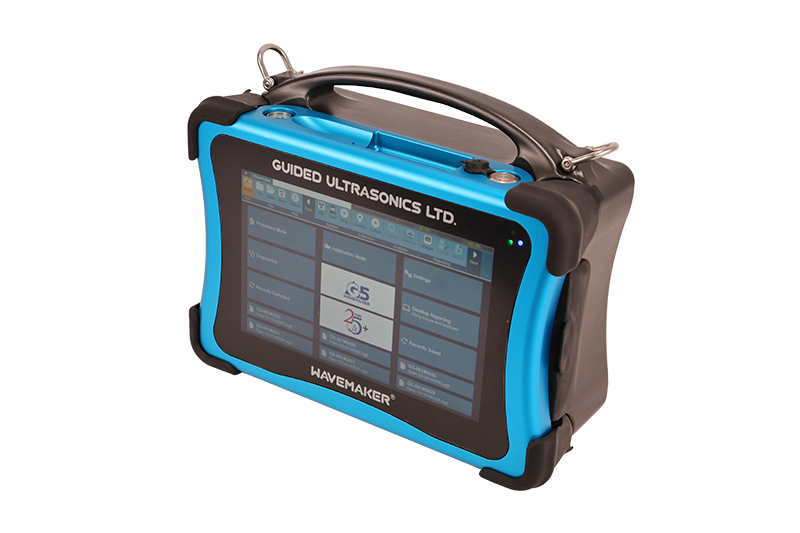

Wavemaker® G5

The G5 is the latest full‑capability instrument for guided wave pipe screening developed by GUL. This system enables rapid inspection of extended pipeline lengths from a single test position, providing 100% volumetric coverage for detecting corrosion and erosion defects, improving probability of detection, and supporting more effective integrity assessments.

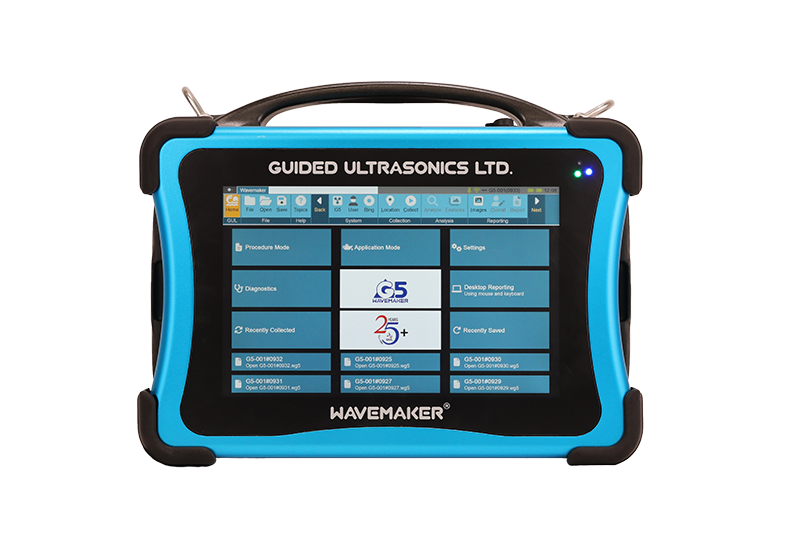

An on‑board touchscreen computer runs the full inspection process—handling setup, data collection, and analysis directly on the instrument, without the need for a separate laptop (though laptop‑based operation remains supported). The G5 interface is designed for efficient use by both experienced and entry‑level inspectors, with procedure‑based setup, software‑assisted feature recognition, and streamlined data‑to‑report workflows that promote consistency and reliable results.

The Wavemaker® G5 is compatible with all Screening Rings for inspection and non‑ATEX gPIMS® Sensors for scheduled monitoring.

Optimized Procedure‑Based Operation
Software-Assisted Feature Recognition
Streamlined Data‑to‑Report Workflow
Intuitive On-Board Control Interface
Touchscreen Control – 10.1” Ultra‑Bright
Operator ID – iButton Reader
Flexible Connectivity Options
Remote Diagnostics
Integrated GPS
32 Data Channels
Extended Frequency Range
Hot-Swappable Batteries

Specifications

Dimensions W x D x H (approx.)
330 x 260 x 145 mm [13" x 10.2" x 5.7"]
Weight (approx.)
6.7 kg [14.8 lbs]
Display Type
Glove compatible, multi‑touch, ultra‑bright toughened
Display Size & Resolution
26.6 cm [10.1"] – 1920 x 1200
Instrument Controlling Software
Wavemaker® WaveProX
Number of Transducer Channels
32
Sensor Compatibility
All GUL Screening Rings & non‑ATEX Monitoring Sensors
Collection Maximum Range
400 m [ 1,300 ft ] (each direction)
GPS
99 Channel (multi-GNSS receiver), < 2.5 m Horizontal Accuracy
Battery Type
Dual Hot Swappable 99.4 Wh Li‑Ion Smart Rechargeable
Typical Battery Life
150 standard tests
Diagnostics
Dedicated channels for instrument, sensor, & cable performance verification
Warranty
1-year warranty included

Supplied with

WaveProV License
Accessories
3 m Sensor Cable
USB Laptop Cable
Smart Battery  (x2)
Mains Charger

Optional extras

  • Extra Batteries
  • External Battery Charger
  • Warranty Extension options
