Claw Transducers

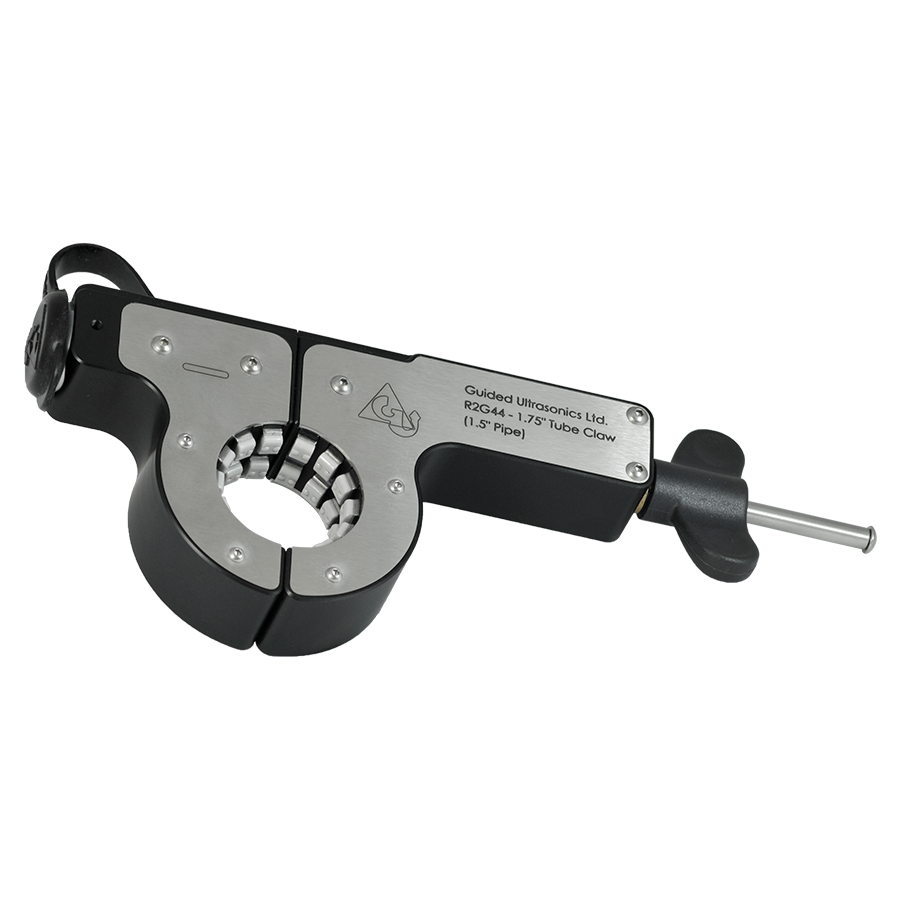

The small diameter transducer or “Claw” is able to reach in and fit between closely spaced tubes where conventional rings cannot be mounted. The claw is often used to inspect boiler, heater, or furnace tubes from the outside. One hundred percent coverage can be obtained, including areas that are difficult to inspect using other methods (for example penetrations and concealed bends). The inspection can normally be performed even if the tubes are still full of the catalyst.

There is also a remote access option where the tool head is attached to a 2-metre long extension arm that allows inspection of very difficult to access tubes or pipes (for example those within a bundle). Different transducer spacing options are available to allow the system to be optimised for detecting certain types of defects.

Available Versions:

Tube Size Pipe Size OD (inch) OD (mm)
0.75″ 0.750 19.05
1″ 1.000 25.40
0.75″ 1.050 26.67
1.25″ 1.250 31.75
1.00″ 1.315 33.40
1.5″ 1.500 38.10
1.25″ 1.660 42.20
1.75″ 1.750 44.45
Tube Size Pipe Size OD (inch) OD (mm)
1.5″ 1.900 48.26
2″ 2.000 50.80
2.25″ 2.250 57.15
2″ 2.374 60.30
2.5″ 2.500 63.50
>2.75″ 2.750 69.85
2.5″ 2.874 73.00

Specifications:

Number of Channels 8
Operating Temperature -40° to 70°C (160°F)
Radial Clearance 50mm (2")
Compatibility Wavemaker® G3, G4 (with MF Option) and G4Mini (Fully Loaded)

Options:

  • High Temperature (HT) Versions
  • Extended Reach Arms
  • Custom Larger Sizes
